18kW Capacity Rectifier Power System with Power distribution and
Battery Monitor Function
18kW Capacity Rectifier Power System with Power distribution and
Battery Monitor Function

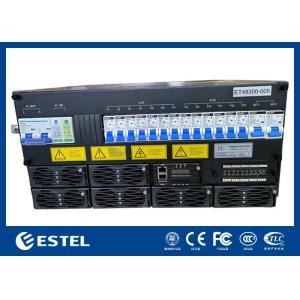

ET48300-005 sub-rack power supply 5U height compact design to meet
critical application needs of fiber and microwave transmission,
access device, switch. The system maximum power is 300A, with AC /
battery / load MCBs.
The cables are front accessing with MCB and busbar.
> Standard 19-inch width which has the advantage of wide use
> 5U height compact design, space and installation cost can be
saved
> Front operation and cable accessing, good-looking and safe
maintenance
> Perfect battery management, prolongs the life of the battery
well provide various communication ports,
RS485, internet port, dry contacts, etc. which enables flexible
networking and remote monitoring
> Rectifier and controller are hot pluggable, easy and quick
on-line maintenance
> Wide input voltage range(85-300Vac) the power grid is
adaptable
ET48300-005 consists of distribution unit, rectifier module,
conversion module, monitoring module.
The configuration is optional, as table below:
| Configuration | Rectifier module | Remark |
| Standard | GB 4943 | For details, please refer to the specifications of modules |
| Standard | IEC/EN 62368-1 |
| Standard | EN 55032 Class A,GR1089 Issue 4 ,R3-10, R3-11, R3-12 Class B
certified by North America |
| Standard | EN300386,CLASSA |
18kW Capacity Rectifier Power System with Power distribution and
Battery Monitor Function
System Configuration
Two operating methods:
(1) AC input: Startup rectifier module after AC powered-on, outputs
-48Vdc, at the same time charge the battery and power the
conversion module, conversion module outputs 220Vac.
Under normal conditions, the parameters of rectifier module and
distribution unit are all under controll of the monitoring module,
operating according to the preset parameters or user’s commands. If
AC mains fault, the battery will power to the system, and continue
outputing - 48 VDC and 220 vac, with the discharge of the battery,
the voltage of the battery starts to descend, when the voltage is
under 43.2 V + / - 0.5 V, the monitoring module send battery
under-voltage signal and close the load output directly, then the
power system will stop working. When external AC mains recovers,
the system will normally work again. (All above monitoring data are
system default values and can be reset by user)
(2) -48V input: No AC current or no AC be connected, access
external power -48V to -48V load port, startup monitoring and
conversion module, 220Vac output.
Temperature compensation function is on by default, which can be
activated or forbiddened by user’s command if necessary. Operation
temperature ≥55℃, the power output of the power supply will be
linearly reduced (@65℃,output power will be 1300W).
Specifications
| Type | ET48300-005 |
| System | Dimension | 482.0(W)*350.0(D)*5U(H) |
| Weight | ≤25kg(withoutrectifiers) |
| Coolingmode | Naturalcooling |
| Installationmode | Installedon19-inchrackorinsidethecabinet |
| Cablingmode | Topinletandtopoutlet |
| Maintenancemode | Frontmaintenance,supportmodulegradechange |
| Protectionlevel | IP20 |
| AC Distribution | Inputmode | 220VACsingle-phase |
| Inputcapacity | 1×100A/2P |
| Inputfrequency | 45~65Hz,ratedvalue:50Hz/60Hz |
| ACSPD | 20kA/40kA,8/20μs |
| DC Distribution | Outputvoltage | -43~-58VDC,ratedvalue:-53.5VDC |
| Maximumcapacity | 18kW |
| Batterybreakers | 2×125A/1P |
| Loadbreakers | LLVD:32A/1P×2+40A/1P×2+63A/1P×3 |
| BLVD:6A/1P×2+10A/1P×2+16A/1P×2 |
| DCSPD | 10kA/,8/20μs |
| Rectifier | Inputvoltage | 85VAC～300VAC,rated220VAC |
| Efficiency | ＞96% |
| Ratedpower | 3000W(176~300VAC) |
| Workingtemperature | -40℃~+75℃(fullyoutputbelow50℃) |
| Dimension | 106.5mm(W)×286mm(D)×41.5mm(1U/H) |
| Weight | ≤2kg |
| Coolingmode | Forcedcooling |
| Powerfactor | ≥0.99 |
| THD | ≤5% |
| Controller | Signalinput | 4AI(3Batterytemp.,1ambienttemp),7DI(SPD,6commonDI) |
| Alarmoutput | 6drycontact |
| Communicationport | RS485,SNMP |
| Displaymode | LCD |
| Environment | Operating | -40℃~+75℃(fullyoutputbelow50℃) |
| temperature |
| Storagetemperature | -40℃~+70℃ |
| Operatinghumidity | 5%~95%(non-condensing) |
| Altitude | 0~3000m(Ifthealtitudeiswithintherangeof2000mto3000m,themaximumoperating |
temperaturedecreasesby1℃asthealtitudeincreasesby200m.)
|
Application
(1) Integration access
(2) Indoor distribution and extension system
(3) Mobile station and extension coverage system
(4) WLAN
(5) Satellite communication ground station and microwave
communication station
(6) Weak current distribution room
(7) Other AC/DC uninterruptible power system
Features
(1) Two outputs:-48Vdc, 220Vac
(2) Two inputs:-48Vdc, 220Vac
(3) Adoption of active power factor compensation technology, power
factor >0.99
(4) Wide operating range of AC input voltage: 90~280Vac
(5) Wide operating temperature range:-5℃~+55℃
(6) Switch technology conducted,
(7) Perfect battery management prolongs battery lifetime: charge
/discharge management, battery temperature compensation,
low-voltage protection.
(8) Hot-swappable
(9) Input over/under voltage protection
(10) Output over-voltage protection, output over-current
protection, output short-circuit protection
(11) Embedded / wall mounted
(12) RS485, RS232 communication interface
