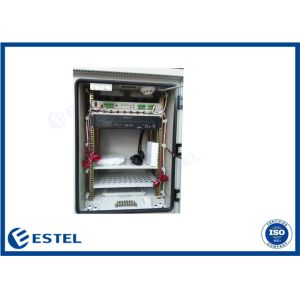

DC48V Fans Weatherproof Electrical Enclosures 0.8mm Thick Inner
Plate
1. Description Of Outdoor Telecom Cabinet
One of the biggest challenges of terminating your
telecommunications equipment outdoors is finding outdoor enclosures
that will be able to properly withstand the elements. Temperature,
moisture, ice, shock hazards, and UV damage are all potential
dangers to consider before purchasing an outdoor enclosure or
cabinet. On top of all that, network hardware generates excess heat
on its own, meaning you might need to consider a temperature
solution that manages airflow with cooling technology.
2. Selling points and Feature Of Outdoor Equipment Cabinet
- Cabinet design allows natural wind cooling through filtered vents
on front door and venting under lip of rain hood
- All fixings are internal to the cabinet to provide a secure
solution
-19" mounting rails front and rear
- Come with plinth for mounting on the floor ground
- Available in colors, Grey, customized colors
3. Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Dimension: H*W*D 1000*650*650mm |
Layout | 1 compartment |
Equipment Installation Method | 19″ Data Rack Rails |
Door | With one front door, and special lock for outdoor cabinet (support
padlock) |
Material | Galvanized steel; 1.2mm thick outer plate, 0.8mm thick inner plate |
Structure | Welded |
Ingress Protection | IP55 |
Temperature Control | Cooling | TEC air conditioner and DC48V fans |
Temperature | Temperature | Working Temperature: 40°C ~ +55°C |
Storage Temperature: -40°C ~ + 70°C |
Transport Temperature: -50°C ~ +70°C |
Humidity | Relative Humidity | 5% ~ 100% |
Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%)W/m2 |
4. Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set | (1) External Dimension: H*W*D 1000*650*650mm (2) 1 compartment (3) With one front door , and special lock for outdoor cabinet (support padlock) ; (4) Material: galvanized steel; 1.2mm thick outer plate, 0.8mm
thick inner plate; |
2 | Auxiliary Direct Ventilation Fans | 4 | Set | DC48V Fans |
3 | TEC | 1 | Set | 400W |
4 | Door detector | 1 | Set | One for controlling LED lamp, the other for open door alarm |
5 | LED LAMP | 1 | Set | 48V LED lamps |
5. Enclosure Cooling
TEC air conditioner Cooling capacity: 400W, DC48V; and DC48V fans
6. Cabinet Structure
(1) External Dimension: H*W*D 1000*650*650mm
(2) 1 compartment,
(3) With one front door , and special lock for outdoor cabinet
(support padlock) ;
(4) Material: galvanized steel; 1.2mm thick outer plate, 0.8mm
thick inner plate;
7. Installation Picture
9. Company Introduction
ESTEL as a Shenzhen communications products processing and
manufacturing enterprises, in product design innovation, as well as
production management, and strive to create the same industry
leadership.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and
production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our
quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes
about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
