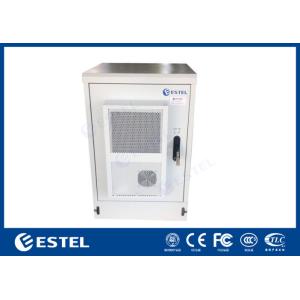

IP55 Outdoor Cabinet With 16U User Space Cooling With Air Conditioner

1.Advantages of telecom cabinet:

• Vandal-proof:

Highly protected case, double walls, each wall thickness 1.5 mm, safe-type locks, or electromechanical lock (remote control of the openings).

The cabinet case is without any external fastenings: hidden door hinges, internal fastening of the air conditioner case and socle, the hidden connection of a diesel generator.

Critical points are protected with a metal 10 mm bar.

• Energy efficiency:

The Outdoor cabinet is equipped with a climate system : air conditioner with low energy consumption, free cooling system, air ventilation.

• Environmental protection:

Protection level is IP65, anti-corrosion powder-polymer coating.

• Additional characteristics:

Model range: from 15 U to 44 U;

Needed climate systems can be installed: AC / DC air conditioner, fan heaters, and ventilation system;

Possibility to increase antivandal protection: anti-vandal belt on the door, an electromechanical lock, double external lock, separate internal lock for the battery compartment and more.

We supply turnkey solutions: outdoor cabinets with pre-installed power systems, electrical distribution, and a set of sensors.

The Cabinet technical characteristics (specification, climate unit, sensors) can be adapted to individual customer requirements.

2. IP55 Outdoor Cabinet With 16U User Space Technical Parameters

1. Model No:ET6565100-16U
2. Protection Level:IP55 ,Waterproof,dust proof.
3. External dimension:H1000mm×W650mm×D650mm (can be customized)
4. Internal Dimension:19 inch rail, 16U
5. Material:Galvanized steel,single wall, 1.2mm thickness,
6. Insulation:PEF (optional)
7. Coating:Polyester powder coating
8. Color:RAL7035(can be customized)
9. Cooling:500W 220VAC 50HZ
10. Lock:Anti-theft three-point locking system,support padlock
11. Hinge:Inner hinge
12. Lamp:220VAC LED Lamp
13. Installation Options:Floor mounted
14. Cable Routing: Cable in and out from the bottom of cabinet
15. Maintenance:One front door, front maintenance

3. IP55 Outdoor Cabinet With 16U User Space Cabinet Pictures

4.IP55/IP65

IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks

IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are availabl

5. Packing and Delivery

(1)Packaging: Wooden case then onto pallet

(2) Delivery:

• By Express:Door to door, very convenient, don't need to clearance or pick-up
• By Air:Airport to airport, you need to do the customs clearance and pick up the goods at your local airport
• By sea: Port to port and you need to do the customs clearance and pick-up the goods at your local port

Introduction

Tianjin Estel Electronic Science and Technology Co., Ltd (ESTEL(GUANGDONG) TECHNOLOGY CO., LTD), located in China, is a professional supplier of integrated outdoor telecom cabinet and temperature control solutions for outdoor telecom base station. As a science and technology innovative company, we engage in the R&D, manufacture, and sales of telecommunication equipment. Estel has a well-established team of technical and management experts who can meet customers’ specific needs accurately.

The base station integrated solutions and products include outdoor integrated telecom equipment cabinet, battery cabinet, RRU cabinet, power supply cabinet, environment monitoring system, TEC peltier air conditioner, AC220V compressor air conditioner, DC48V variable frequency air conditioner, heat exchanger, rectifier, UPS, embedded telecom power system etc. All the above solutions and products can be custom made.

Our products and solutions have been deployed all over China. Our main domestic customers are China Telecom, China Mobile, China Unicom, State Grid, Shenzhen / Beijing Metro and Huawei / ZTE etc. In addition, our products have been exported to Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries, etc.

“ Customers First, Quality First ” is always our principle. We have attained many certifications, such as ISO9001, ISO14001, OHSAS18001, CE, UL, FCC etc. AS a telecom integrated solutions / energy saving system integrator in China, We have strong advantages in technology competitiveness, management competitiveness ,service competitiveness and price competitiveness. Through many years of experiences in design, production and implementation of different projects around the world, we have gained great reputation. Relying on professional technique and strict quality control, we will continuously offer high cost-effective products and solutions to our respectable customers globally. We will always try our best to meet customers’ need and requirement.
