    Heat Insulated 20U IP65 Outdoor Data Cabinet

    Ask Lasest Price
    Brand Name : ESTEL
    Model Number : ET6565115WF-EQ
    Certification : ISO9001, CE, 3C, FCC, TLC, IP65
    Price : negotiation
    Payment Terms : L/C,T/T, etc
    Supply Ability : 10,000 sets per month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Heat Insulated 20U IP65 Outdoor Data Cabinet


    Heat Insulated IP55 Outdoor Wall Enclosure Air Conditioner Cooling Wall Mounted Cabinet Corrosion Resistance


    1. Product Description


    This cabinet can contains 20U 19” power/equipment . Support wall mounted, floor mount and pole mount. Using high quality galvanized steel material, waterproof, moistureproof, dustproof, and corrosion resistance.


    ESEL company provides full range of temperature control products and cabinet solutions for

    - Telecommunication

    - Data Center

    - Base station

    - Solar based installations

    - Wireless cell sides & switches

    - Industry Automation

    - Energy Storage

    2. Specification


    ModelET6565115WF-EQ
    External Dimension W×D×H650×650×1150mm
    Layout20U 19” standard rack
    DoorWith one front door,and anti-theft three point lock for outdoor cabinet (support padlock)
    HingeEmbedded
    MaterialGalvanized steel; single wall with heat insulation is optional
    Cable enter methodOn the bottom
    ColorRAL7035, powder coating finish
    Ingress ProtectionIP55
    Noise Level60-65dB
    Temperature Control Cooling500W AC220V 50Hz air conditioner+ 2*AC220V fans
    AC and DC power distribution unit

    AC input: 63A/2P*1;

    AC output: 63A/2P*1;

    DC input : 63A/1P *1;

    DC output : 16A/1P*1;

    DC output : 10A/1P*3;

    DC output : 6A/1P*3

    Circuit breaker brand: Schneider

    Environmental monitoring system

    1* environment monitoring unit, 1U, SNMP communication;

    1* smoke sensor;

    1* water sensor;

    1* temperature & humidity sensor;

    sensor;

    1* door sensor

    power supply: DC48V


    3.Cabinet size diagram


    External size: W×D×H 650×650×1150mm


    4 Cabinet installation


    Floor, wall hanging, pole installation steps and dimensions


    1 ) Landing


    Floor installation effect diagram


    2 ) Wall mount

    Wall mounting effect diagram


    3 ) Pole

    Pole mounting effect diagram

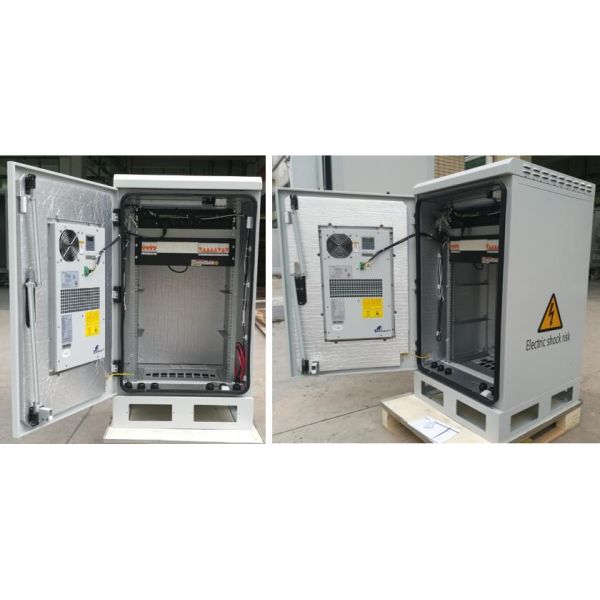

    5. Cabinet picture




    Quality Heat Insulated 20U IP65 Outdoor Data Cabinet for sale
